Product Features:

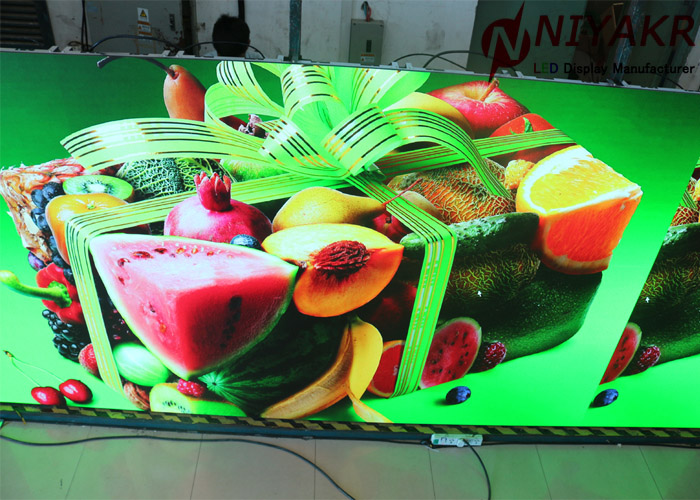

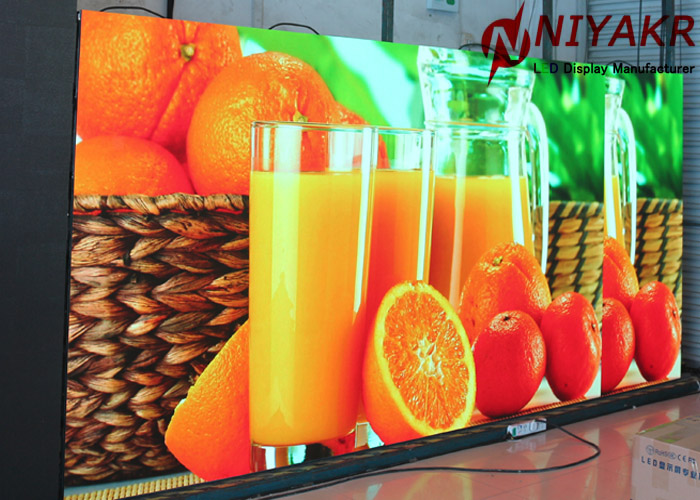

P1.25mm 400mmx300mm HD led video wall For Indoor Application
1. High resolution brings delicate ,display effect,and it is a perfect embodiment of the
new generation of ultra-high-definition LED display technology;
2.The Cabinet’s 4:3 resolution is specialized for command center;
3. 3000:1 contrast ratio acquired with high quality black face;
4. Advanced R & D technology and reliable components to ensure its excellent high gray scale and high refresh rate;
5. 140degree wide viewing angle, Viewers can get high-quality display in a variety of angles;
6.showing perfect seamless visual effects at any direction, any size, any shape stitching,
7.Using the die-cast aluminum material to improve heat-dissipation performance and extend the lifespan of the cabinet;
Application
Widely used for dispatching command center, control command center, monitoring security center, conference room, weather broadcasting, exhibition hall, Cinema, TV studio, etc.
Item Parameter Pixel Pitch 1.25mm(H*V) Pixel Density 640000dots/sqm LED Shape SMD1010 Module Size 200mm*150mm Module Resolution 160*120 dots Driving Mode 1/30Scan,constant current Cabinet Material Die-casting Aluminum Cabinet size 400*300mm Contrast 3000:01:00 Cabinet weight 6.7kg View Angle 140°(horz.), 140° (vert.) Max Power Consumption 3000 W/sq.m Average Power Consumption 1000 W/sq.m Gray Scale 12-16bits for red,green,blue Colors 16.7 M Input voltage (AC) 110V ~ 240V Frame Frequency 50Hz-75Hz Refresh Rate ≥2880Hz Brightness Adjustment 0-100% Gamma Correction ( -0.5 -- 5.0 ) Color Temperature 6500-9000K Operation Control System Nova; Linsn;Colorlight.... Support Input Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI Stock Temperature (-40℃~+85℃) Operating Temperature ( -30℃~+50℃ ) Operating Humidity 10-90% RH Life Span 100,000Hours MTBF ≥10,000Hours Protection Rating IP41 Rating Flatness of the screen ≤1mm Control Distance Cat5E:100m,Multi-Mode Fiber:500m,Single-Mode Fiber:15km
