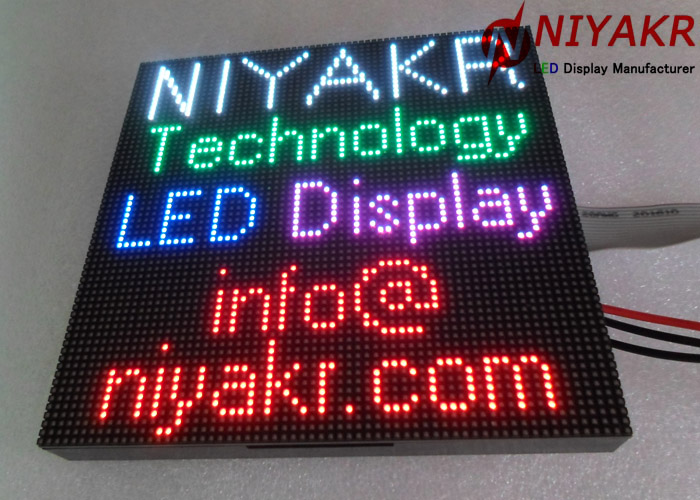

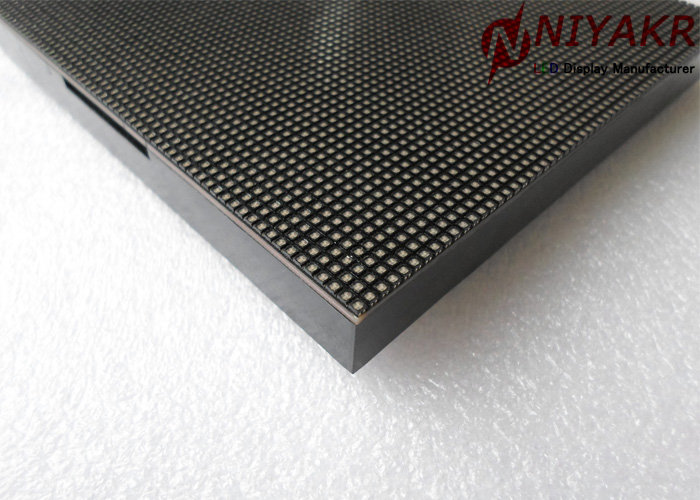

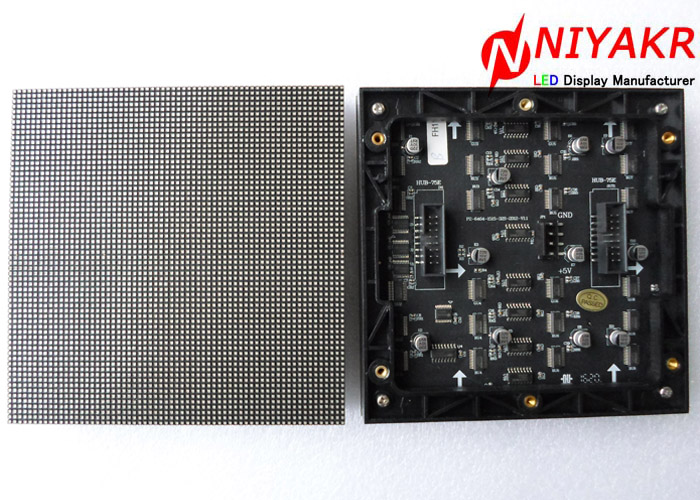

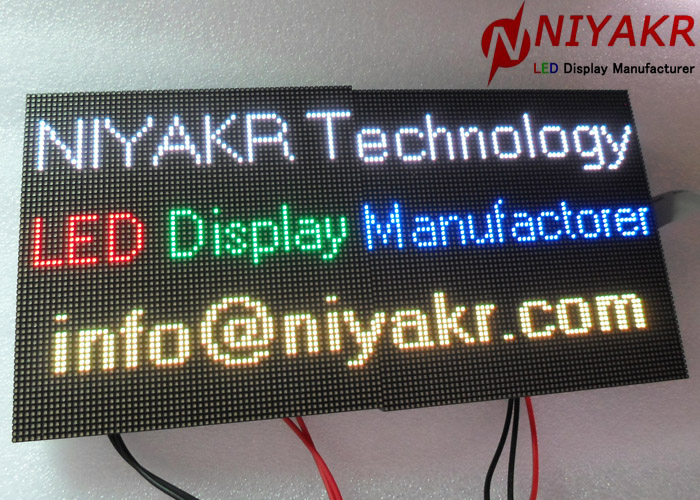

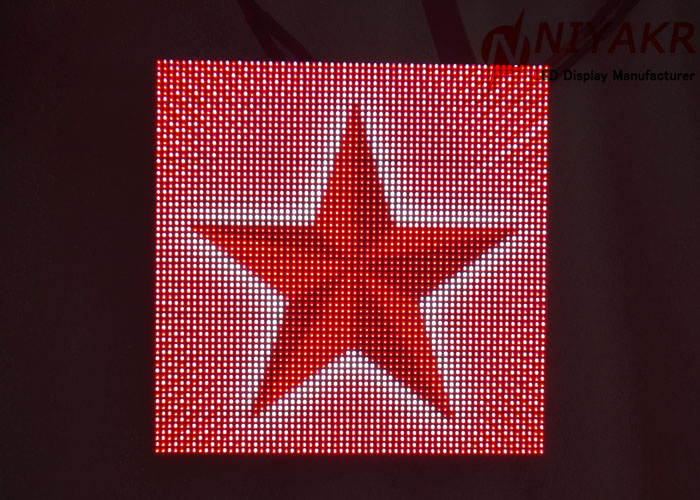

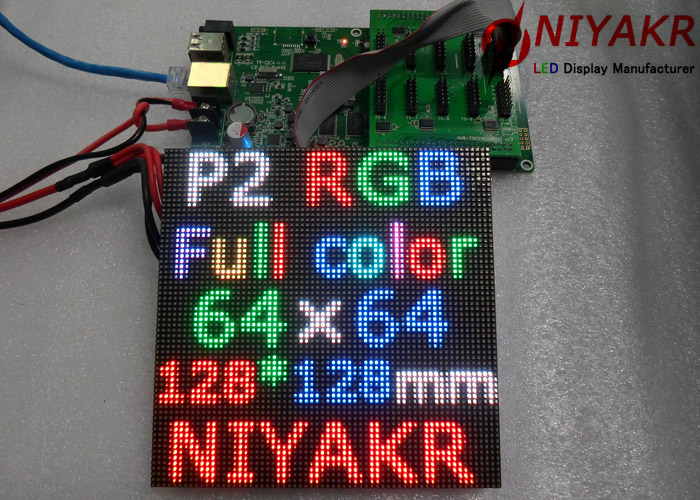

P2 64x64 RGB Full Color LED Display Module
LED Lamp Specification
Color
Package
Intensity
Viewing Angle
Wavelength
Testing Conditions
Red
SMD1515
45-65mcd
120°/120°
620-625nm
25℃,10mA
Green
SMD1515
120-200mcd
120°/120°
516-530nm
25℃,5mA
Blue
SMD1515
20-40mcd
120°/120°
465-475nm
25℃,5mA
Module Parameter
Pixel Pitch
2mm
Pixel Configuration
SMD1515
Density
250,000 pixels/sqm
Module Resolution
64pixel(L) * 64pixel(H)
Module Dimension
128mm(L) * 128mm(H) * 18mm(D)
Driving Mode
Constant current, 1/32 duty
Electricity Parameter
Optical Ratings
Brightness
≥1200 cd/sqm
Viewing Angle
120°(Horizontal); 120°(Vertical)
Best Viewing Distance
≥2m
Gray Grade
14 bits
Display Color
4.4 trillion colors
Brightness Adjustment
100 grades by software or automatically by sensor
Max. Power Consumption
20W
Control System
Frame Frequency
≥60Hz
Refresh Frequency
≥1920Hz
Input Signal
Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance
100m(Ethernet cable);
20KM(optical fiber cable)
Support VGA Mode
800*600, 1024*768, 1280*1024, 1600*1200
Color Temperature
5000—9300 adjustable
Brightness Correction
Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature
-20~+60 ºC
Storage Temperature
-30~+70 ºC
Working Humidity
10%~90% RH
Lifetime
100,000 hours
MTBF
5000 hours
Continuous Operating Time
≥72 hours
Protection Grade
IP31
Out-of-Control Pixel Rate
≤0.01%
